Analog Signal Converter and Trip Amplifier attachement

Analog Signal Converter and Trip Amplifier - D1053S

Input from Zone 0 (Zone 20), Division 1, installation in Zone 2, Division 2
0/4-20mA, 0/1-5 V, 0/2-10 V Input-Output Signal linear or reverse
Two independent trip amplifiers
Output for burnout detection
High Accuracy, μP controlled A/D converter
Three port isolation, Input/Output/Supply
EMC Compatibility to EN61000-6-2, EN61000-6-4
Fully programmable operating parameters
High Reliability, SMD components
High Density, one channel, 2 trips per unit
Simplified installation using standard DIN Rail and plug-in terminal blocks
250 Vrms (Um) max. voltage allowed to the instruments associated with the barrier

The single channel DIN Rail Analog Signal Converter and Trip Amplifier D1053S accepts a voltage or current input from externally powered transmitters, located in Hazardous Area, and converts, with isolation, the signal to drive a Safe Area load. Output signal can be direct or reverse. Two independent Alarm Trip Amplifiers are also provided.

Each alarm energizes, or de-energizes, an SPST relay for high, low, low-startup or burnout alarm functions. The two alarm relays trip points are settable over the entire input signal range.

D1053_DTS0041_EN.pdf D1053_ISM0016_EN.pdf

No Product Accessories.

Power Bus Enclosure

Analog Signal Converter and Trip Amplifier - D1053S

D1053S

Configurations

Related Products

TX Repeater, Power Supply, and Trip Amplifier

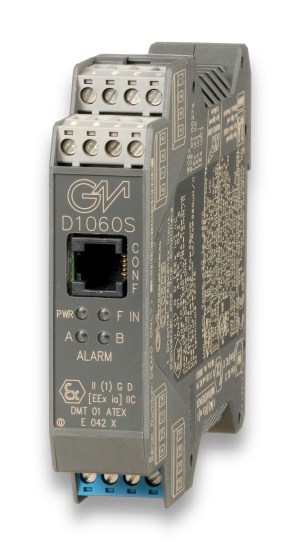

Frequency-Pulse Converter, Repeater and Trip Amplifier
