Open Face Level Transmitter for Wastewater Control – VersaLine attachement

PMC-STS

Open Face Level Transmitter for Wastewater Control – VersaLine - VL2000

Clog free, open face design
± 0.1%, ±0.25% accuracies
Ranges: Full Scale (Zero based) from 10"WC to 150 PSI
All welded 316L SS or Titanium construction
4-20mA, 2 wire output
Full Scale range as low as 10"WC available

The VersaLine VL2000 Series submersible level transmitters are specifically designed for use in wastewater and pump/lift station applications.

The ceramic sensing element provides a rugged flush open face design which avoids clogging or sludge build up from materials often encountered in wastewater.

The stainless steel construction will satisfy most applications. Where chemical environments dictate an option of Titanium is available.

The standard polyurethane vented cable is molded to the transmitter providing the highest integrity waterproof assembly well proven in thousands of installations worldwide. FEP cable is available as an alternate for harsh environments.

A feature of the VL2000 Series is full scale ranges as low as 10″ WC.

VL2000.502.pdf There is no manual for this product.

No Product Accessories.

Housing Material

Electrical Connection

Range

Accuracy

Cable

Open Face Level Transmitter for Wastewater Control – VersaLine - VL2000

VL2000

Configurations

Related Products

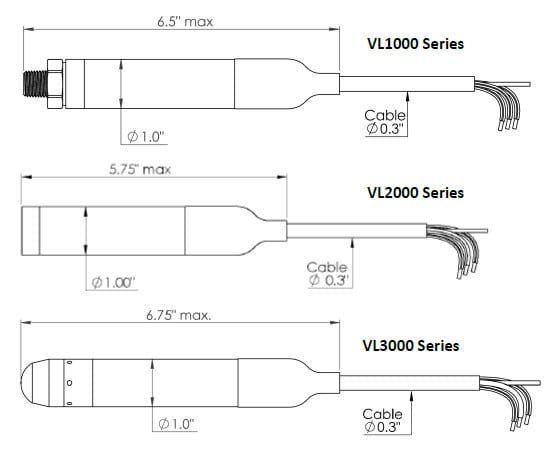

Smart HART® Submersible Level Transmitters Control – VersaLine

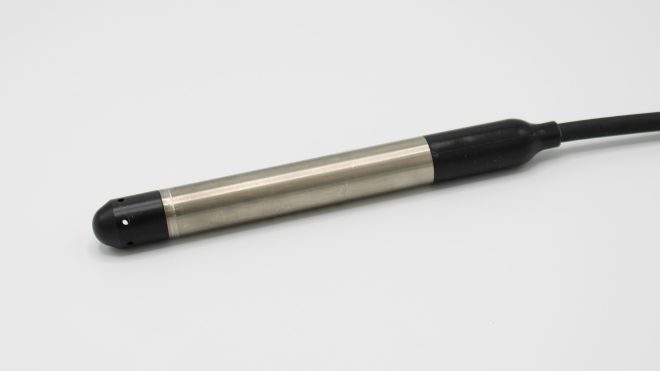

Slim-Line – VersaLine – Depth / Level Transmitter

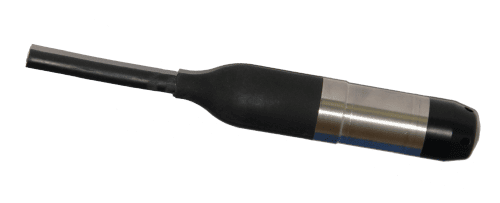

High-Accuracy – Depth / Level Transmitter
