Miniature Depth / Level Transmitter - MTM3000 Series

Fully submersible, 0.39" diameter
Ranges: Full Scale (Zero based) 0-15 PSIG to 0-500 PSIG + more
Accuracy: 0.1%, 0.25% & 0.5%
Millivolt output signal
Material: Titanium with 5-year corrosion warranty

The Miniature MTM3000 Series submersible transmitters are specifically designed for depth and level measurements of groundwater, wastewater and sea water where space is very limited.

The housing diameter of 0.39 inches offers the user an ideal high performance level measurement in small diameter, i.e. 1/2” monitoring wells, stand pipes and bore holes. The titanium construction and integral polyurethane cable provide a reliable long term solution for these difficult-to-measure applications. Kevlar is used as a cable reinforcement to avoid any elongation, particularly when long lengths of cable are required for deep wells.

Long term stability of typically ±0.1% per year also contributes toward a maintenance-free installation.

MTM3000-Datasheet.pdf There is no manual for this product.

No Product Accessories.

Housing Material

Electrical Connection

Electrical Configuration

Range

Accuracy

Miniature Depth / Level Transmitter - MTM3000 Series

MTM3000 Series

Configurations

Related Products

Pneumatic Tank Level Pressure Transmitters

Miniature Electronic Transmitter Pressure, Level, and Vacuum MIN/PT-EL-TH

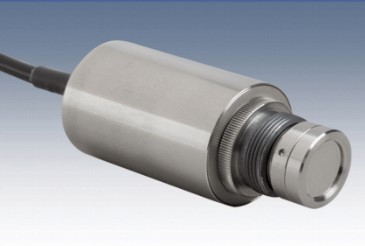

Miniature Electronic Transmitter Pressure, Level, and Vacuum MIN/PT-EL-CV
